Overview
The UfiSpace S8901-54XC is a high-performance, data center networking white box switch that is designed to address the fast growing segment of the data center switching market and the needs to push service capacity to the next level.
With 6 x 100G QSFP28 ports and 48 x 25G SFP28 ports, the S8901-54XC data center switch utilizes the Broadcom Trident3-X5 silicon to provide intelligent features and structured management for centralized servers to enable high-efficiency Ethernet connectivity for data center services.
These switches deliver performance and intelligence to the network edge in a flexible 1RU form factor that helps reduce infrastructure and administrative costs.
The S8901-54XC brings data centers into the future networking with a powerful Intel Denverton 4-core processor and high-speed 25G and 100G interfaces. It comes with redundant, hot swappable components for convenience, increased availability, reliability and lower costs of maintenance.
FEATURES
- High density 25G service interfaces
- 2.0Tbps switching bandwidth capacity
- Broadcom Trident3-X5 Silicon

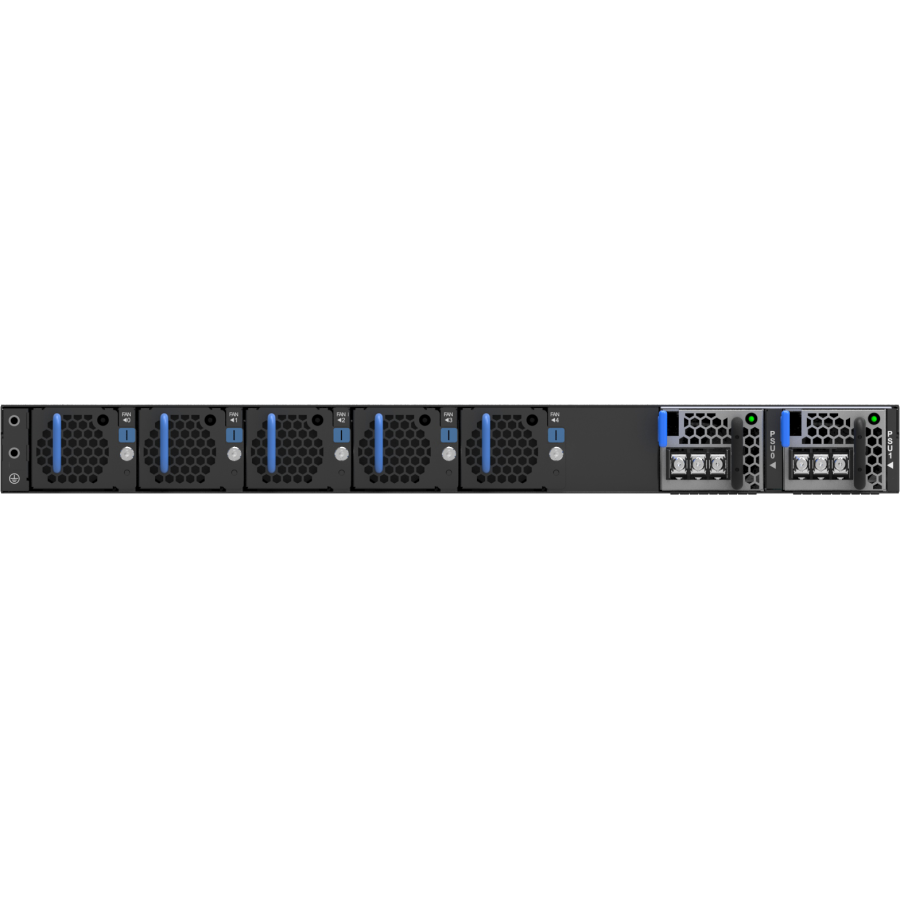

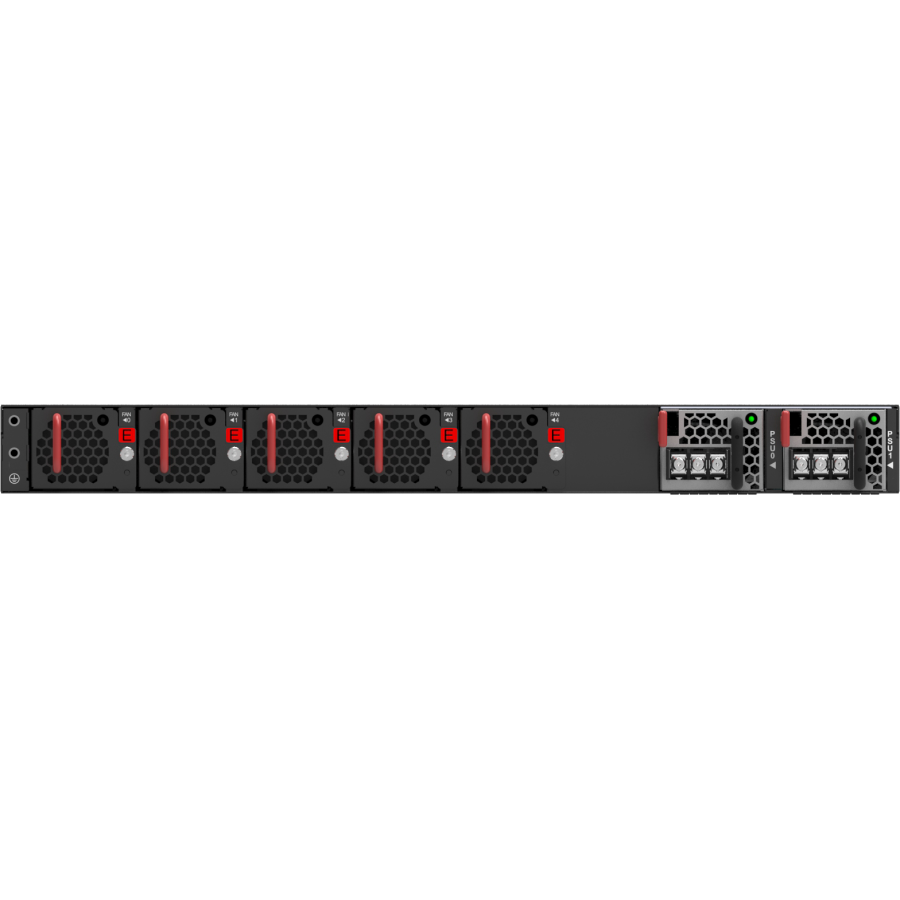

- Front-to-back and Back-to-front airflow options
- Flexible and efficient data processing
- On-chip packet buffers minimize the data latency
- Enable real-time network status visibility
- BMC for monitoring and managing equipment health status
- 1 + 1 hot swappable power supply field replaceable units
- 4 + 1 hot swappable fan field replaceable units
KEY BENEFITS
- Monitoring link status to re-assign traffic flow dynamically
- Optimization for the east-west traffic pattern
- Flexible and efficient data processing
- Centralize and adaptive packet memory management architecture
- On-chip packet buffers minimize the data latency
- Dynamic load balancing enhances ECMP
- Enhanced network telemetry with programmable support
- Enable real-time network status visibility
- Versatile connectivity as a data center leaf or ToR.
Title | Version | Date | Size | |
---|---|---|---|---|
S8901 Data Sheet |
Title | Version | Date | Size | |
---|---|---|---|---|
Hardware Installation Guide |

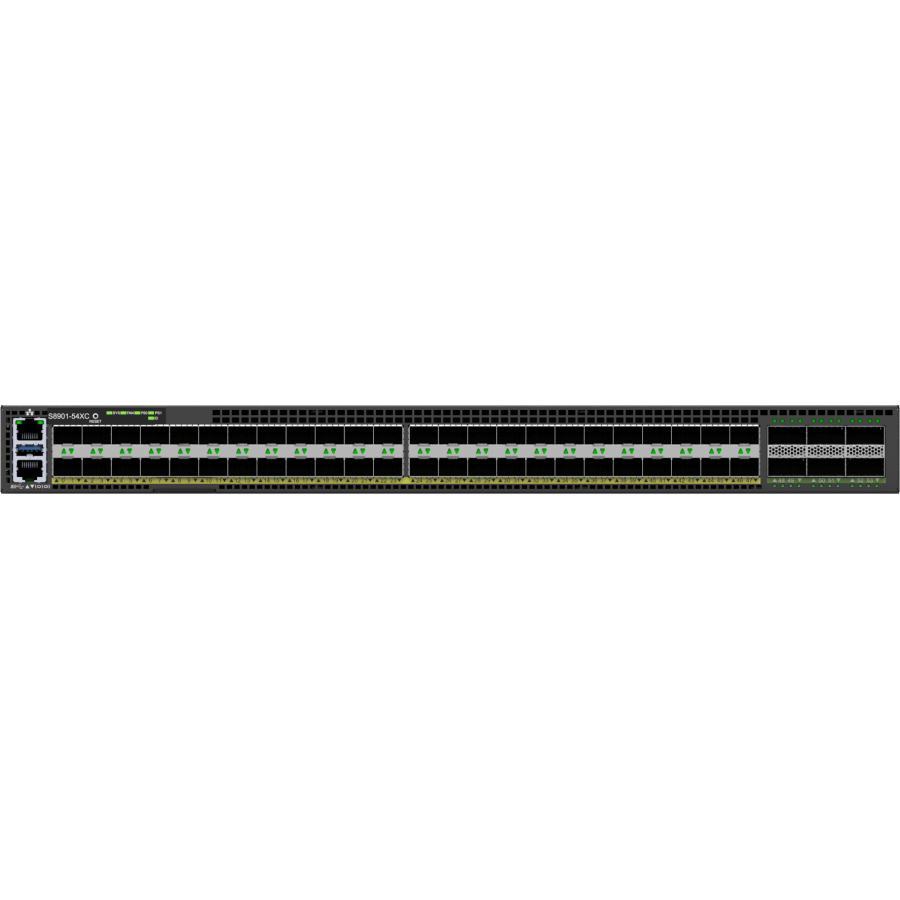

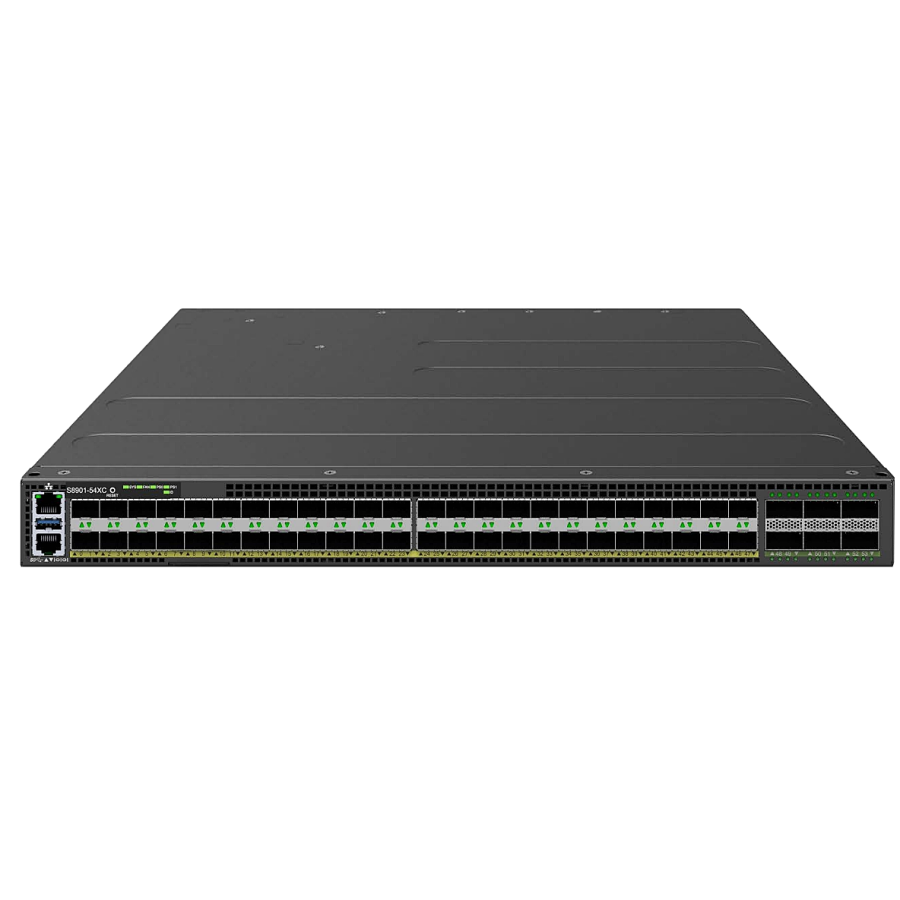

S8901-54XC 25/100G Data Center Switch
- 1 RU, Data Center Leaf/ToR Switch
- 2.0Tbps switching capacity
- 6 x 40/100G QSFP28 ports
- 48 x 1/10/25G SFP28 ports
- 1 x 100/1000M RJ-45 management port
- 1 x RJ45 serial console port
- 1 x USB 3.0 Type-A port
- Front-to-back or Back-to-front airflow available
- Supports ONIE
-
$AUD $15,770.16
*RRP Pricing*To View Channel Discounts Please Login
