S1M
World’s Densest 42-Node Microserver System
- 42 Node Independent Hot-plug Microserver Nodes
- Redundant Hot-plug 40GbE Integrated Ethernet Switches
- 2OU Microserver with Quanta Patented
-
$AUD $3,930.12
*RRP Pricing*To View Channel Discounts Please Login
- Ex Tax: $3,572.84
S1M
World’s Densest 42-Node OCP Compatible Microserver System

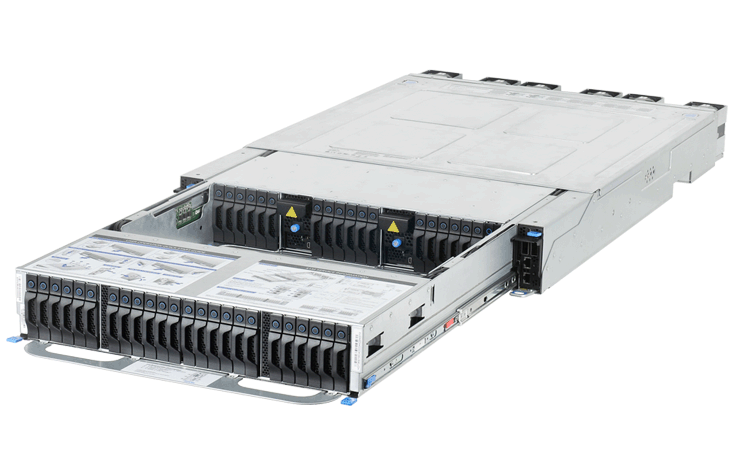

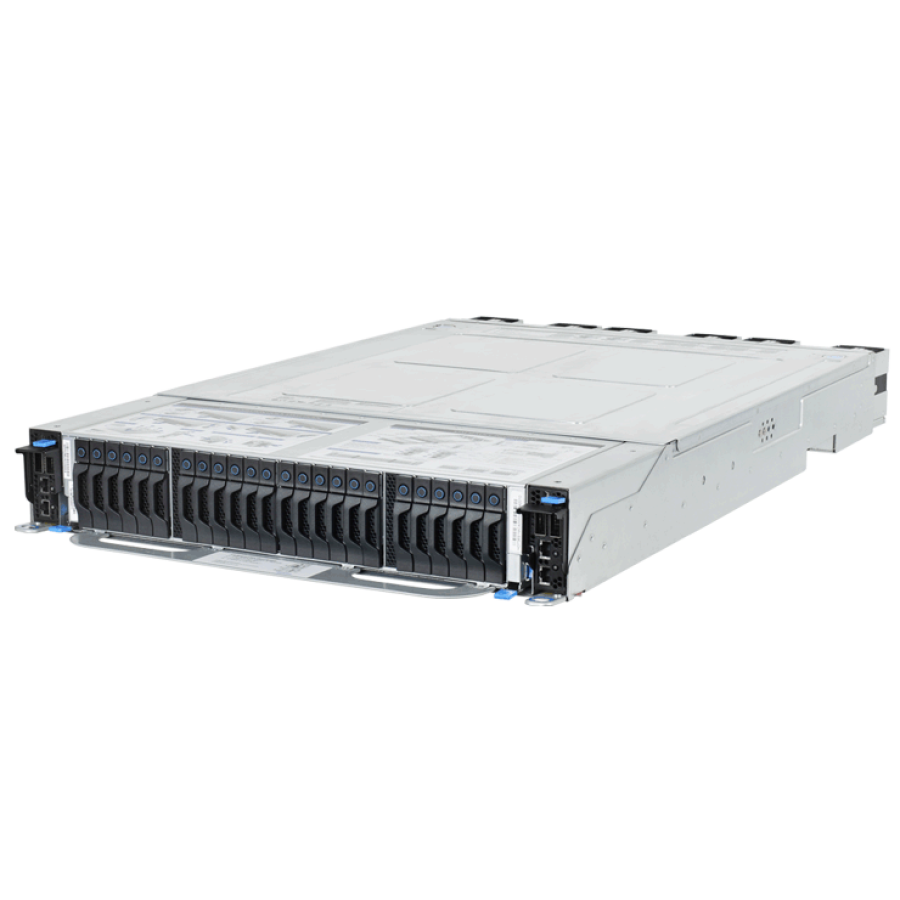

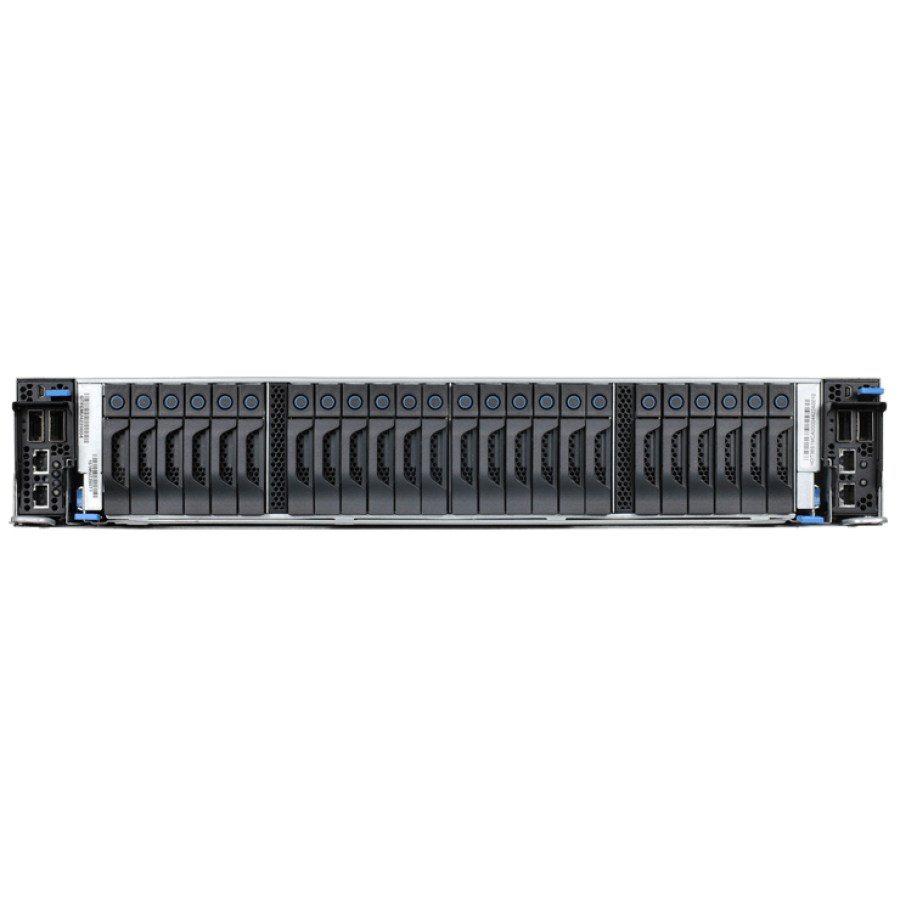

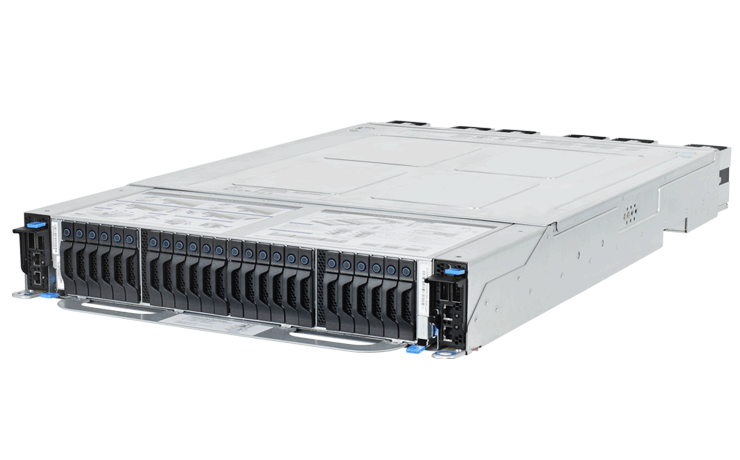

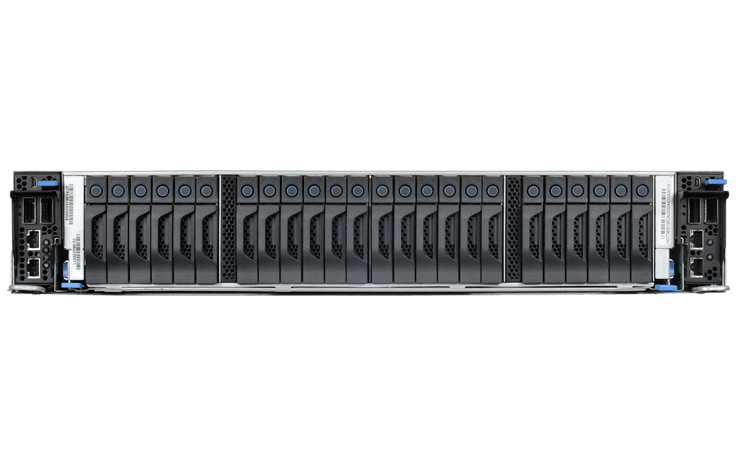

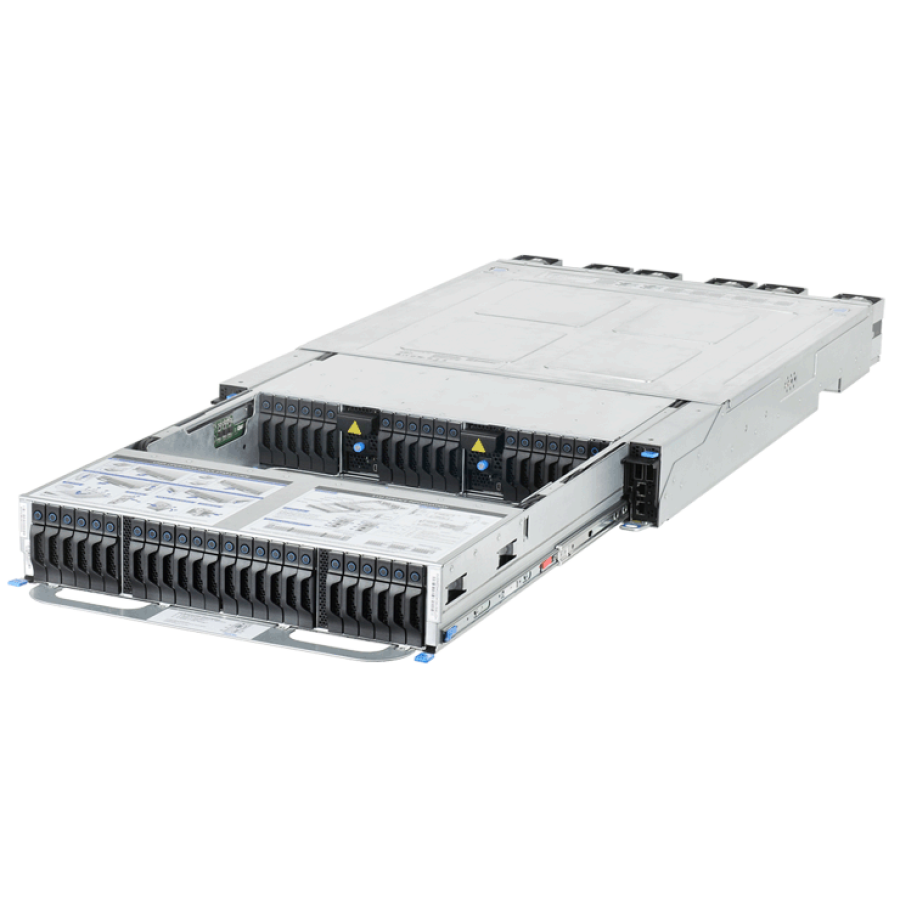

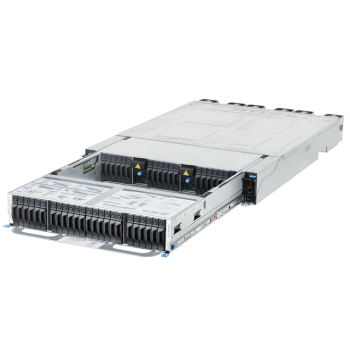

The S1M, powered by Intel® Atom™ processor C2000 product family, is a microserver system in OCP standard. It is based on QCT's patented "hidden-shelf" chassis design to fit 42x independent hot-swappable microserver nodes in a 2 OU (open unit) rack space.
Redundant Hot-swappable 40Gb/s integrated Ethernet switches
S1M also has an integrated Intel’s FM5224 switch that aggregates all the inbound and outbound network traffic. It significantly reducing cabling complexity in the rack that enhances manageability and reduces CAPEX by eliminating extra Top-of-Rack switch.
About QCT
Quanta Cloud Technology (“QCT”) is a global datacenter solution provider extending the power of hyperscale datacenter design in standard and open SKUs to all datacenter customers. Product lines include servers, storage, network switches, integrated rack systems and cloud solutions, all delivering hyperscale efficiency, scalability, reliability, manageability, serviceability and optimized performance for each workload. QCT offers a full spectrum of datacenter products and services from engineering, integration and optimization to global supply chain support, all under one roof. The parent of QCT is Quanta Computer Inc., a Fortune Global 500 technology engineering and manufacturing company.
![]() | ![]() | ![]() |
- Dimensions
- W x H x D (inch)21.1 x 3.7 x 31.5W x H x D (mm)536 x 93.2 x 800
- Front I/O
- up to (4) 1GbE RJ 45 management port on the system
up to (4) 40GbE QSFP+ ports on the system
up to (2) switch console port via USB on the system
- Fan

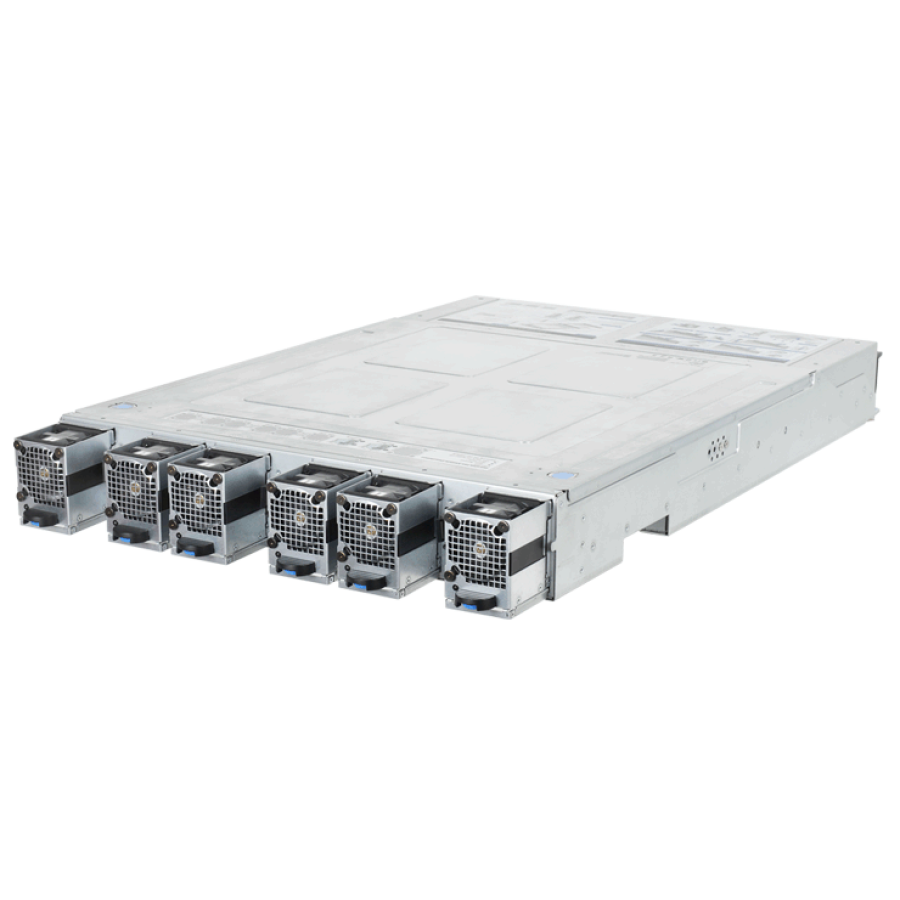

- (6) hot-plug system fans
- Operating Environment
- Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH.
Non-operating relative humidity: 20% to 90%RH
- Storage
- (1) mSATA connector per node
- Weight (Max. Configuration)
- 47 (kg)
103 (lbs)
- Network Switch
- Built-in redundant switches with up to (4) 40G QSFP+ ports for uplink
- Processor
- Processor Type(1) Intel® Atom™ processor C2000 product familyMax. TDP Support20WNumber of Processors(1) per node
- Chipset
- Intel® Atom™ processor C2000 SoC
- Memory
- Memory Type1333/1067 MHz DDR3 ECC SODIMMTotal Slots(4) slot per nodeCapacityup tp 32GBMemory Size8GB, 4GB
- Storage Controller
- OnboardIntel® Atom® processor C2000 SoC SATA
(1) mSATA 6Gb/s connector
- Onboard Storage
- (1) mSATA connector per node
- Video
- (4) 10/100 RJ 45 management port on the system
(4) 10GbE SFP+ ports on the system
(2) switch console port via USB on the system
- Network Controller
- LOMIntel® Atom® processor C2000 SoC 2.5 Gbs SerDes per noder connection to back-plane board
10/100 Mbps managment per node connection to back plane board
Built-in redundant switches with up to (4) 40G QSFP+ ports for uplink
Title | Version | Date | Size | |
---|---|---|---|---|
QCT Mezzanine Card Portfolio | v1 | 09/03/2015 | 379.75KB | ![]() |
QCT Product Portfolio | v5.0 | 18/06/2015 | 2.29MB | ![]() |
QCT Rack System Portfolio | v2.1 | 09/03/2015 | 760KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
S1M Manual | 1.0 | 24/09/2014 | 685.47KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
S1M CCL | 10/11/2015 | 6.79KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
S1M BIOS | S1M_3A02 | 04/08/2014 | 5.96MB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
S1M BMC | 3.07 | 04/08/2014 | 262.87KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
S1M LOM-Avoton LOM 1G | 5.1.2 | 25/06/2014 | 296.9KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
Safety Information French for CUL | 18/06/2014 | 404KB | ![]() |
|
Safety Information Russian Language v1 | 18/06/2014 | 556KB | ![]() |
|
Safety Information Simplified Chinese for CCC | 18/06/2014 | 756KB | ![]() |
|
Safety Information Tranditional Chinese for BSMI | 18/06/2014 | 619KB | ![]() |
|
Safety Information English for UL | 18/06/2014 | 295KB | ![]() |
Title | Version | Date | Size | |
---|---|---|---|---|
S1M CMC-FW CMC | 3.07 | 04/08/2014 | 23.47MB | ![]() |
