S3E | X10E-9N
Driving Down Hosting TCO with the S3E Series
- New Generation Platform with Performance Enhancement
- Embedded Switches to Lower Network Per Port Cost
- Space-saving Ultra-dense Chassis Design
- Multifuntional Serviceability
-
$AUD $13,971.37
*RRP Pricing*To View Channel Discounts Please Login
- Ex Tax: $12,701.24
Hybrid, High Density and High Efficiency

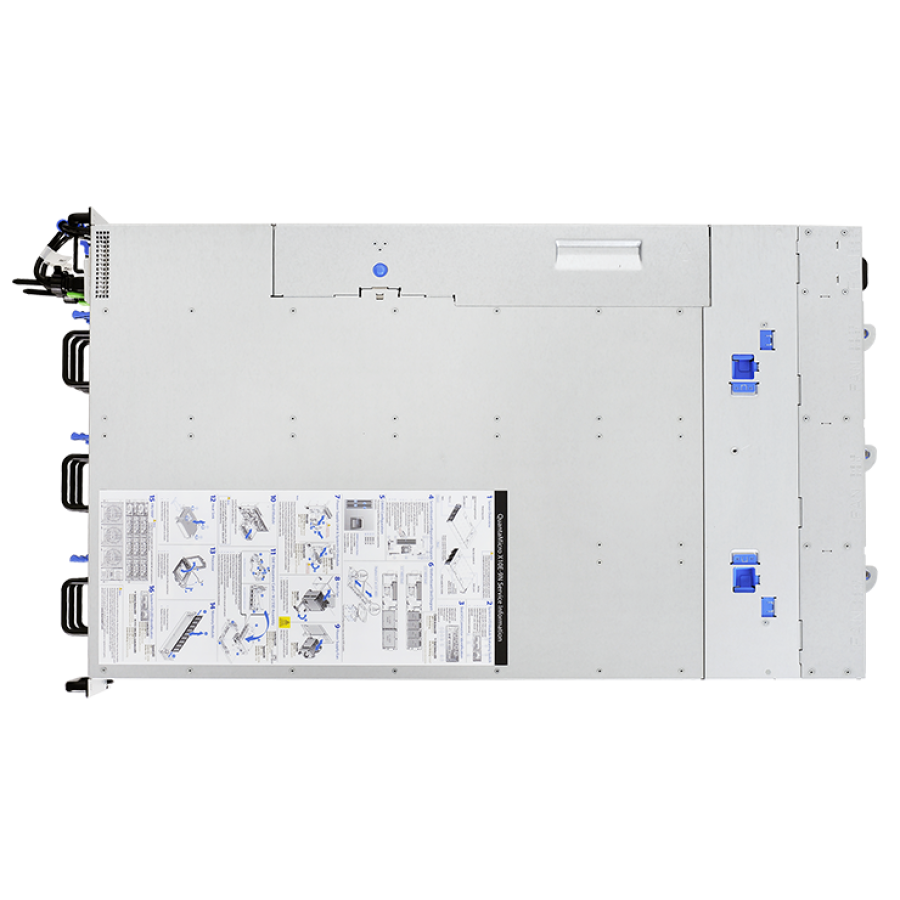

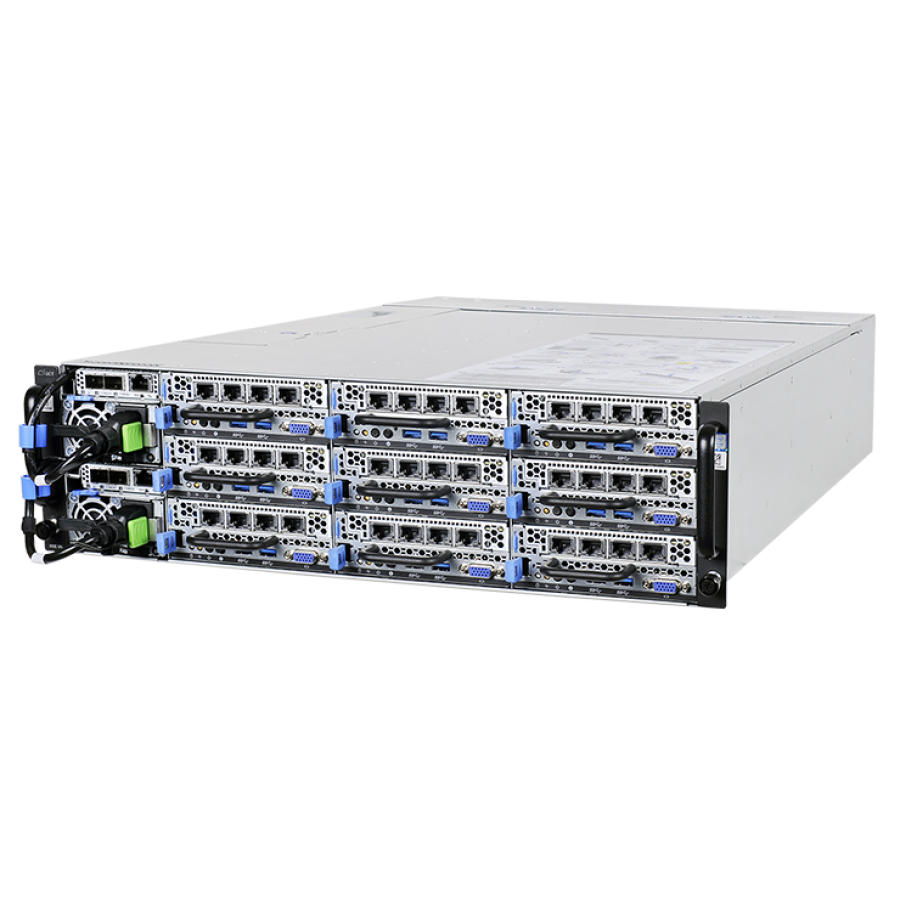

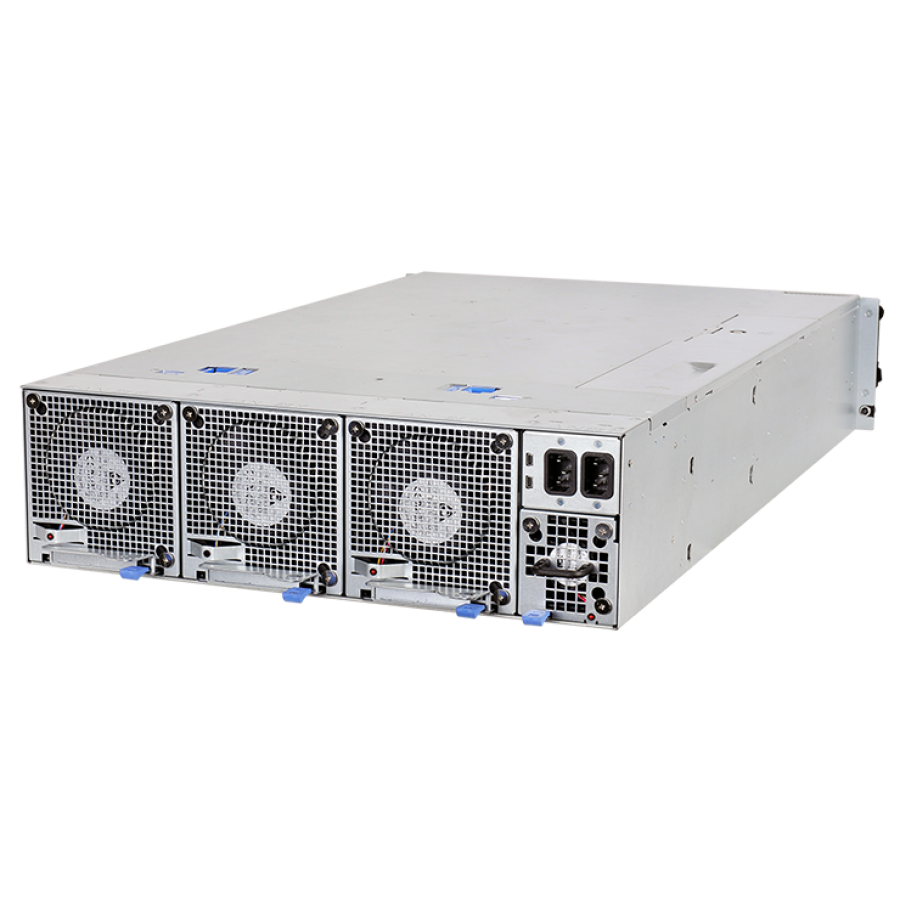

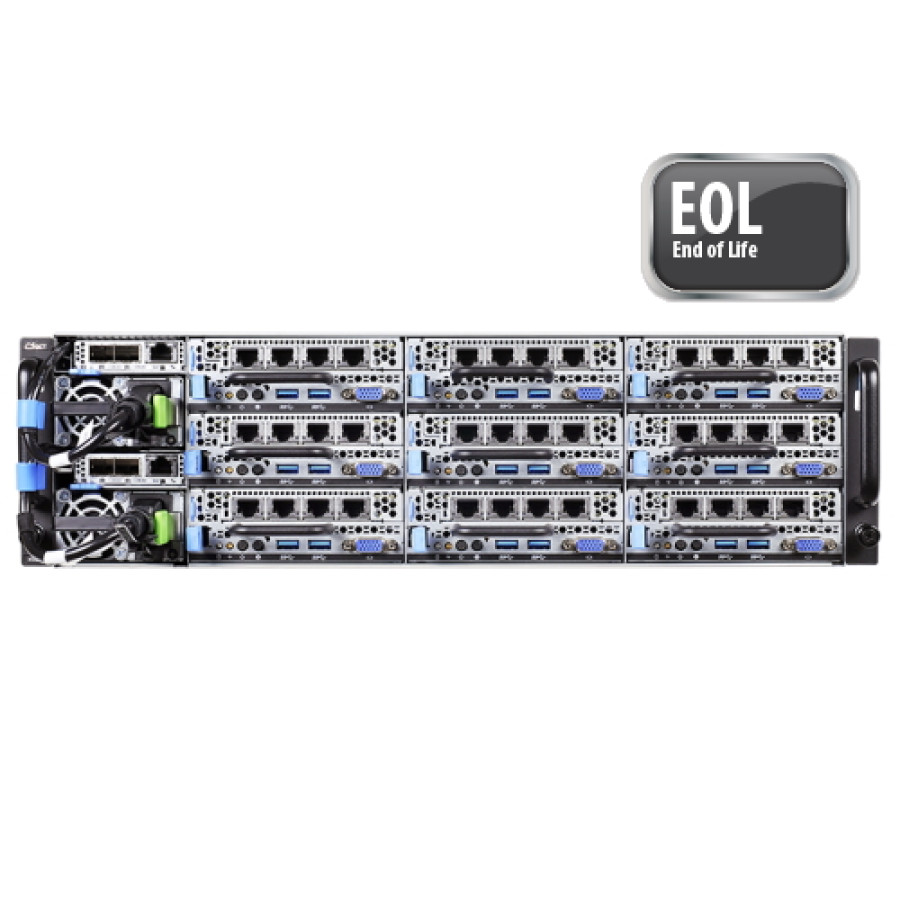

The S3E |X10E-9N is a microserver built upon the Intel® Xeon® processor E3-1200 v5, v6 product family, supporting up to 9 server nodes in a compact 3U chassis. Dedicated to attaining the best space, energy , and cost efficiency, this high-compute-density and low-power system is the best suited for the growing number of hyper-scale workloads found inside modern datacenters.
Enhances Manageability and Reduces TCO
The S3E |X10E-9N simplifies data center management by merging up to 9 independent server nodes into a single system, significantly enhancing manageability by allowing the control of all nodes in the chassis at once. The converged infrastructure also integrates switches; this eliminates the necessity for an extra Top-of-Rack switch, considerably improving network cabling service time and significantly reducing Total Cost of Ownership (TCO).
Increased Performance at Optimal Energy Efficiency and Lower OPEX
Embedded with the latest Intel® Xeon® E3-1200 v5, v6 processors, the next-gen S3E |X10E-9N not only enhances computing performance by 10% compared to its predecessor, but also boosts its memory performance by 33%, while lowering power consumption by at least 20%. By sharing a set of redundant power supplies and cooling modules across all nodes and switches, this efficient architecture enhances energy efficiency and reduces operational expenses (OPEX).
Multifunctional Serviceability
Conceived with serviceability as a top priority, the S3E |X10E-9N comprises hot-swappable servers, switches and PSU, all designed to be cold- aisle operational for easy service access. This flexible chassis comes in a 4 x 2.5” SSD/HDD SKU option for optimal throughput or a 2 x 3.5” SKU option for extended storage capacity. Since the 3.5” SKU can also install 2.5” drives without additional modification, this refined microserver opens up the door for 1 x 3.5” + 1 x 2.5” hybrid mode to handle more specific computing workloads as the cloud service market matures.
Processor | |
---|---|
Processor Type | Intel® Xeon® processor E3-1200 v5 product family Intel® Xeon® processor E3-1200 v6 product family |
Max. TDP Support | Intel® Xeon® processor E3-1200 v5: 80W Intel® Xeon® processor E3-1200 v6: 72W |
Number of Processors | (1) per node |
L3 Cache | 8 MB Intel® Smart Cache |
Form Factor | |
---|---|
Form Factor | 3U 9 Nodes (9) Front Side Hot-Swap |
Dimensions | |
---|---|
W x H x D (inch) | 17.6" x 5.1" x 29.8" |
W x H x D (mm) | 447 x 130.8 x 758 mm |
Chipset | |
---|---|
Chipset | Intel® C236 PCH-H |
Storage | |
---|---|
Default Configuration | 2.5" Fixed 3.5" Fixed |
Options | Option 1: (2) 3.5" fixed SAS/SATA HDD/SSDs Option 2:(4) 2.5" fixed SAS/SATA HDD/SSDs |
Memory | |
---|---|
Total Slots | (4) slots per node |
Capacity | up to 64GB UDIMM |
Memory Type | 2133/2400 MHz DDR4 UDIMM |
Memory Size | 16GB, 8GB, 4GB UDIMM |
Expansion Slot | |
---|---|
Default Configuration | (1) PCIe Gen3 x8+ x4 mezzanine slot for LAN & M.2 |
Network Controller | |
---|---|
LOM | Optional NIC (more options refer to the CCL) Option 1: QCT Intel® i350 mezzanine with (1) PCIe 2280 M.2 + (2) 1G RJ45 Option 2: QCT Intel® i350 mezzanine with (1) PCIe 2280 M.2 + (4) 1G RJ45 |
Optional NIC | Network Switch Option 1: 18x GbE; 2x 10GbE SFP+ Embedded Switch Module Option 2: BMC I/O RJ45 Console Module |
Front I/O | |
---|---|

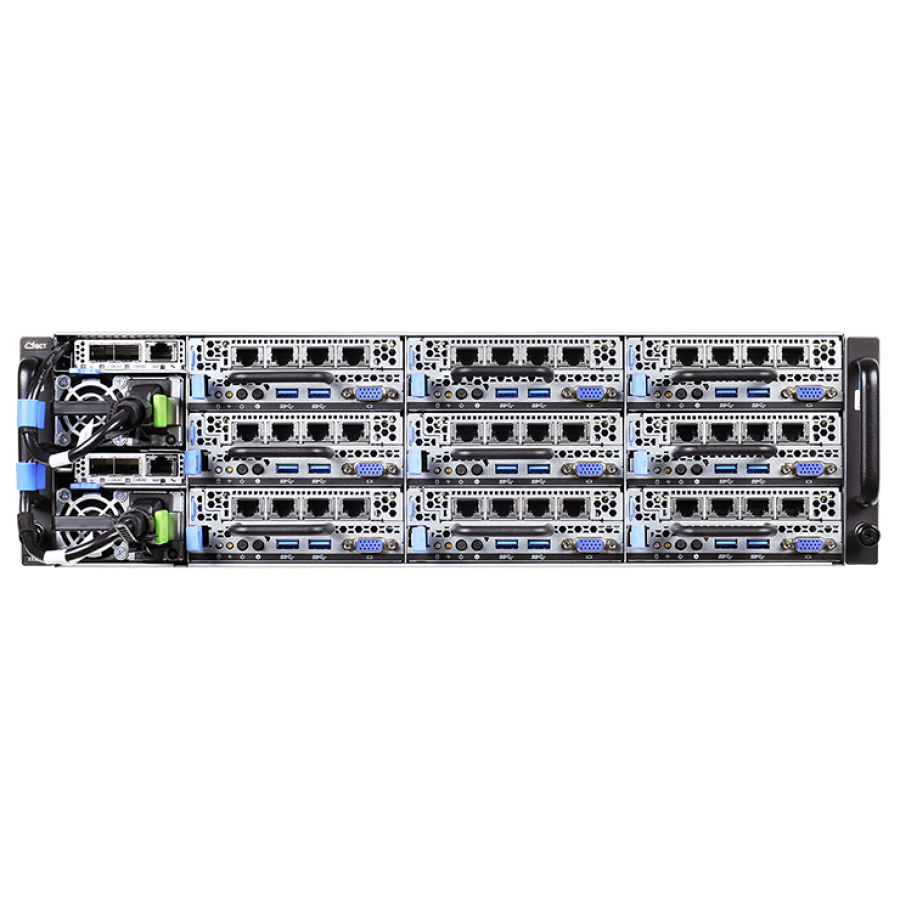

Front I/O | (2) USB 3.0 (1) VGA port Power Button with LED / ID button with LED / Status LED/ HDD LED |
Storage Controller | |
---|---|
Onboard | Intel® C236: (4) SATA 6Gb/s ports |
Optional Controller | (more options refer to the CCL) (1) LSI 3008 SAS 12 Gb/s storage controller |
Power Supply | |
---|---|
Power Supply | (1+1) high efficiency hot-plug 1600W PSU, 80 Plus Platinum (only support 220V AC input) |
Onboard Storage | |
---|---|
Onboard Storage | (1) SATADOM (optional) (1) PCIe 2280 M.2 mezz card controller (optional) (1) PCIe/SATA 2280 M.2 on Rear M.2 Mezz card on board (optional) |
Fan | |
---|---|

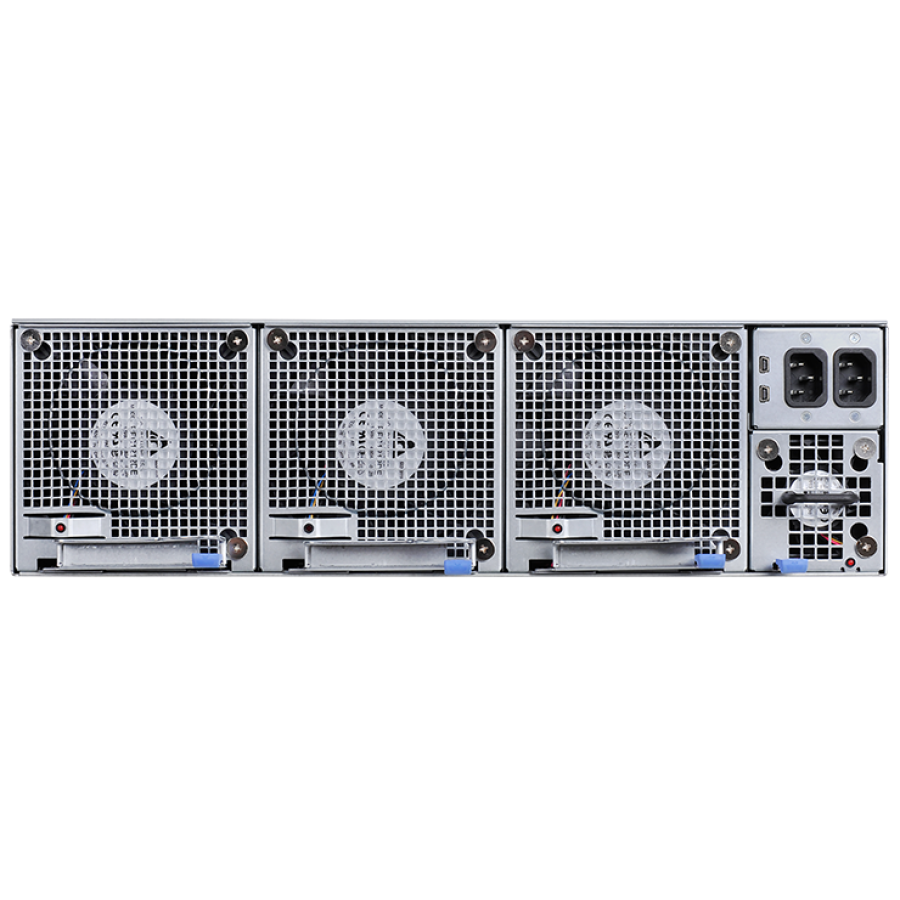

Fan | (3) 12076 Fan Module (1) 6076 Fan Module Support N+1, One rotor fail |
Video | |
---|---|
Video | Integrated AST2400 with 8MB DDR3 video memory external VGA connector |
System Management | |
---|---|
System Management | IPMI v2.0 Compliant, on board "KVM over IP", QSM support |
Rear I/O | |
---|---|
Rear I/O | NA |
Operating Environment | |
---|---|
Operating Environment | Operating temperature: 5°C to 40°C (41°F to 104°F) Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 50% to 85%RH. Non-operating relative humidity: 20% to 90%RH |
TPM | |
---|---|
TPM | TPM 1.2/2.0 SPI module |
Weight (Max. Configuration) | |
---|---|
Weight (Max. Configuration) | 52.85 (kg) 116.51 (Ibs) |
