Ultra-Dense 1U Storage Server Optimized for Tiering Hot and Cold Data
- Support for up to 12x high capacity LFF HDD bays and 4x SSDs for caching.
- Ideal for scale-out infrastructures such as Microsoft Storage Spaces Direct (S2D), VMware vSAN, Hadoop, and Ceph.
- QCT’s low profile M.2 adapter card supports additional M.2 boot drives.
Efficient Computing Power with dual Intel ® Xeon® Scalable Processors
- Sufficient computing power to handle the most demanding encryption, deduplication, and erasure workloads
- Supports Intel® Apache Pass (AEP) storage class memory for next level cache acceleration
Flexible I/O Expansion Slots
- Multiple NIC options through OCP mezz
- Internal Cable Chain
- Hardware RAID or pass-through HBA mezz available for selection
- Additional low profile slot can be used for a M.2 adapter, FPGA, or extra NIC card
Patented Inner Cable Chain & Hot-Swappable HDD Carriers for Enterprise-Level Serviceability
- Innovative drawer and drive carriers allowing technician to replace failed drives with minimum effort and downtime
- Enterprise-level availability and serviceability make the D52T-IULH ideal for not only public clouds, but also private and hybrid clouds
- Sold as a Microsoft Azure Stack appliance through Hyperscalers & QCT
Processor | |
---|---|
Processor Type | Intel® Xeon® Processor Scalable Family
|
Max. TDP Support | 140W
|
Number of Processors | 2
|
Internal Interconnect | 9.6/10.4 GT/s
|
L3 Cache | Up to 30.25 MB
|
Form Factor | |
---|---|
Form Factor | 1U
|
Dimensions | |
---|---|
W x H x D (inch) | 17.6" x 1.7" x 34.7"
|
W x H x D (mm) | 448 x 43.2 x 881
|
Chipset | |
---|---|
Chipset | Intel® C621
Intel® C624
|
Storage | |
---|---|
Default Configuration | (12) 3.5"/2.5” HDD hot-plug + (4) 2.5" SSD hot-plug
|
Options | (2) PCIe M.2 support with M.2 adapter for boot disk
|
Memory | |
---|---|
Total Slots | 12
|
Capacity | Up to 768GB RDIMM
Up to 768GB LRDIMM
Up to 3TB (512G*4 DCPMM + 128G*8 RDIMM/LRDIMM)
|
Memory Type | 2666 MHz DDR4 RDIMM
2933Mhz DDR4 RDIMM/LRDIMM
Up to (4) 2666Mhz Intel® Optane™ DC Persistent Memory (DCPMM)
|
Memory Size | 64GB, 32GB, 16GB, 8GB RDIMM
16G, 32G, 64G 2933Mhz RDIMM/LRDIMM
128G, 256G, 512G Intel DCPMM
|
Expansion Slot | |
---|---|
Default Configuration | (1) PCIe Gen3 x16 SAS mezz slot
(1) PCIe Gen3 x16 OCP mezz slot (1) PCIe Gen3 x16 LP MD-2 |
Network Controller | |
---|---|
LOM | N/A
|
Optional NIC | Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine
Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine (more options refer to the CCL)
|
Front I/O | |
---|---|
Front I/O | (1) USB 2.0 port
|
Storage Controller | |
---|---|
Onboard | N/A
|
Optional Controller | Quanta LSI® 3008 12Gb/s SAS mezzanine
Quanta LSI® 3108 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60) Intel® VROC Upgrade Module for PCIe SSD |
Power Supply | |
---|---|
Power Supply | 700W Platinum PSU, 1+1 redundant power supplies, 100- 240V AC
|
Onboard Storage | |
---|---|
Onboard Storage | N/A
|
Fan | |
---|---|
Fan | (2) system fan module assemblies
|
Video | |
---|---|
Video | ASPEED AST2500 8MB DDR4 video memory
|
System Management | |
---|---|
System Management | Redfish v1.1
IPMI v2.0 Compliant, on board "KVM over IP" support QCT System Manager (QSM) v1.8 (Optional) |
Rear I/O | |
---|---|
Rear I/O | (1) VGA port
(1) Micro-USB port (Serial signal) (1) Gbe RJ45 management port (2) USB 3.0 ports (1) MicroSD slot |
Operating Environment | |
---|---|
Operating Environment | Operating temperature: 5°C to 35°C
Non-operating temperature: -40°C to 70°C Operating relative humidity: 20% to 85%RH Non-operating relative humidity: 10% to 95%RH |
TPM | |
---|---|
TPM | TPM SPI 1.2/2.0
|
Weight (Max. Configuration) | |
---|---|
Weight (Max. Configuration) | 30 Kg
|
OCP Compliance | |
---|---|
OCP Compliance | N/A
|
Title | Version | Date | Size | |
---|---|---|---|---|
D52T-1ULH_Datasheet | v20180511 | 2018/05/11 | 289 KB |
Title | Version | Date | Size | |
---|---|---|---|---|
D52T-1ULH_UG | 1.0 | 2017/12/28 | 2.73 MB |
Title | Version | Date | Size | |
---|---|---|---|---|
HS Product Catalog | 1 | 01-10-20 | 6371KB |
Title | Version | Date | Size | |
---|---|---|---|---|
QuantaGrid D52T-1ULH CCL | 2018/01/03 |
Title | Version | Date | Size | |
---|---|---|---|---|
D52T-1ULH FRU Part List | 2017/12/28 | 612 KB |
Title | Version | Date | Size | |
---|---|---|---|---|
D52T-1ULH BIOS | 3B13 | 2019/07/02 | 25.85 MB |
Title | Version | Date | Size | |
---|---|---|---|---|
D52T-1ULH Quanta-ON 10GbE X527-DA2 Quanta | 22.9 | 2018/01/10 | 2.58 MB |
Title | Version | Date | Size | |
---|---|---|---|---|
D52T-1ULH Quanta-ON 10GbE X527-DA2 Quanta | 22.9 | 2018/01/10 | 242.69 MB |
Title | Version | Date | Size | |
---|---|---|---|---|
Safety Information in EN for UL | 2018/03/22 | 295 KB |
Title | Version | Date | Size | |
---|---|---|---|---|
D52T-1ULH 12G-EXPANDER Expander | D52T-1ULH 12G-EXPANDER Expander | 2019/07/02 | 902 KB |

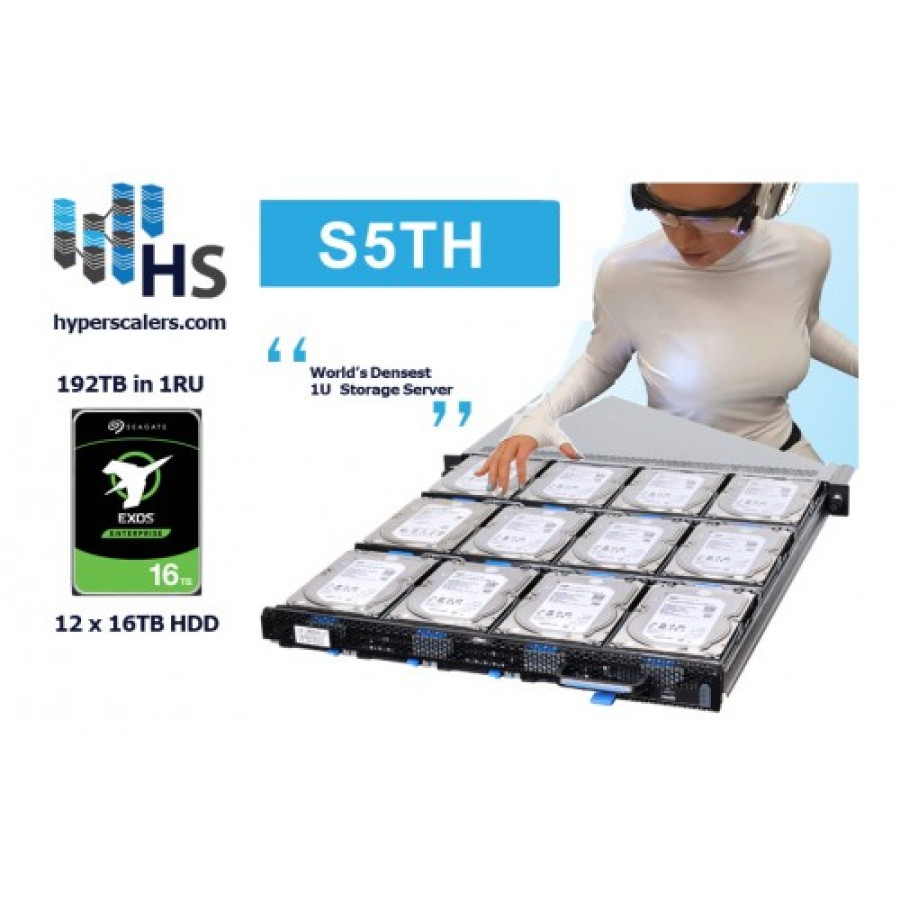

S5TH | D52T - 1ULH
The Ultimate Scale-Out Building Block for Software-Define-Storage
- Ultra-Dense 1U storage server optimized for tiering hot and cold data
- Efficient computing power with dual Intel ® Xeon® Scalable Processors.
- Flexible I/O expansion slots
- Patented inner cable chain & hot-swappable HDD carriers for enterprise-level serviceability.
-
$AUD $4,365.90
*RRP Pricing*To View Channel Discounts Please Login
